portable animal medical x ray machine

FOB Reference Price:Get Latest Price
$4,000.00 - $6,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
STC
Model Number:
TM1060
Properties:
Diagnosis & Injection
model:
1025HF,1040HF,1060HF,8016HF,9020HF
Weight:
7-14.6kg
Max kV:
80kV-100kV
Max mAs:
30mAs-100mAs
Focal spot:
1.0*1.0mm-2.0*2.0mm
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Packaging Details
CARTON
Port
SHENZHEN
Lead Time :
within 7 days

portable animal medical x ray machine



Powerful&stable output,



Unique features for user convenience.











1025HF

Upgraded power by inovative concept

1.Power in a tiny body(100kv/25mA)

2.Strong 100kv output

3.Compact&light weight with higher mA range up to 25mA

4.Wide range of application:from equine lower limb to small animal surgery

5.Reliable performance from robust body





1040HF/1060HF

 The Best seller in the line.

Most popular range that cover all...!!

1.Compact size but powerful output(100kv/40mA,100kv/60mA)

2.Outstanding&Stable imaging capability

3.Ergonomic&Soft OP panel layout

4.Easy access to DR systems

5.Right selection for small animal and equnie stifles radography

6.Convenient handling for advanced image quality

1060HF f1025HF f1040HF f









8016HF/9020HF

Better choice for your Equine Examinations

1.Power with quality (80kv/16mA,90kv/20mA output)

2.Wider range of 80,90kv in 1kv steps

3.Easy access to DR systems

4.Solid body with light weight

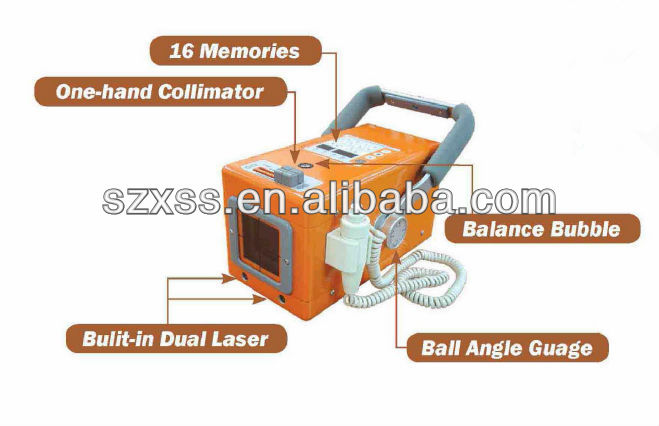

5.One-hand collimator Control

6.Durable design with reliable radiation output

8016HF f




Specifications



8016HF

9020HF

1025HF

1040HF

1060HF

Power(Max)

1.2kW@80kV 15mA

1.35kW@90kV 15mA

1.6kW@80kV 20mA

2.4kW@80kV 30mA

3.2kW@80kV 40mA

Focal spot

1.0 x 1.0 mm

1.2 x 1.2 mm

1.2 x 1.2 mm

1.2 x 1.2 mm

2.0 x 2.0 mm

Inverter frequency

60kHz

65kHz

40kHz

40kHz

40kHz

Filtration total

2.65mmAl

2.5mmAl

3.0mmAl

3.0mmAl

3.0mmAl

Max mAs

30mAs

30mAs

50mAs

100mAs

100mAs

Max kV

80kV

90kV

100kV

100kV

100kV

Max mA@Max kV

15mA@80kV



15mA@90kV

15mA@100kV

20mA@100kV

30mA@100kV

mA steps decrease @kV,mAs

16mA(40-60kV/20mAs)

15mA(40-60kV/30mAs)

15mA(61-80kV/20mAs)

Input:110/120,220/230V

20mA(40-60kV/0.32-30mAs)

18mA(61-70kV/0.32-12.5mAs)

16mA(61-70kV/16-30mAs)

16mA(71-80kV/0.32-8.0mAs)

15mA(71-80kV/10-25mAs)

15mA(81-90kV/0.32-3.2mAs)

14mA(81-90kV/4.0-20mAs)

Input:110/120,220/230V

25mA(40-60kV/50mAs)

20mA(61-80kV/50mAs)

15mA(81-100kV/50mAs)



Input:220/230V

40mA(40-60kV/64mAs)

35mA(40-60kV/100mAs)

30mA(61-70kV/100mAs)

30mA(71-80kV/50mAs)

26mA(71-80kV/80mAs)

26mA(81-90kV/50mAs)

20mA(81-90kV/80mAs)

20mA(91-100kV/80mAs)



Input:220/230V

60mA(40-50kV/0.32-100mAs)

50mA(51-60kV/0.32-63mAs)

40mA(61-70kV/80-100mAs)

40mA(71-80kV/0.32-32mAs)

35mA(71-80kV/40-80mAs)

35mA(81-90kV/0.32-40mAs)

30mA(81-90kV/50-80mAs)

30mA(91-100kV/0.32-50mAs)

Setting increase

0.32-30mAs(22 steps)

40-80kV(1kV step)

0.32-30mAs(21 steps)

40-90kV(1kV step)

0.32-50mAs(22 steps)

40-100kV(1kV step)

0.32-100mAs(26 steps)

40-100kV(1kV step)

0.32-100mAs(26 steps)

40-100kV(1kV step)



Weight

7.0kg

7.8kg

11kg

12.5kg

14.6kg



Dimension(mm)

(L X W X H)

Actual size : 280*140*150

Packing size:490*340*310

Actual size : 275*140*150

Packing size:490*340*310

Actual size : 344*191*188

Packing size:600*400*300

Actual size : 344*191*188

Packing size:620*380*340

Actual size : 344*191*210

Packing size:620*380*340



Exposure Time

0.02-2.5 sec

Collimator lamp

Duration of 30 sec (controlled by both of  hand switch and OP panel)

Ready,X-ray,Wait and Error (low voltage or overload)

Buttons of collimator lamp ON/OFF,Laser pointer ON/OFF ,APR storage key and Display reverse



Protection

Overload protection of  high frequency inverter and X-ray tube

Line voltage(required)

110-130 VAC 50/60 HZ single phase 20A or 200-260 VAC 50/60 HZ single phase 16A

200-260 VAC 50/60 HZ

Single phase 16A
